Wire Rope Clamp Din741 Rigging Hardware Wire Rope Clip

Product Categories

Shanghai Solar Steel Wire Rope & Sling Co., Ltd.

Contact Now

Name: Wire Rope Clamp Din741 Rigging Hardware Wire Rope Clip
Brand: SOLAR
Price: 1 USD

Brand Name : SOLAR

Model Number : 6mm~50mm

Certification : ISO Certified

Place of Origin : Made in China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 pcs a week

Delivery Time : 0-60 days mainly according What item and how many quantities

Packaging Details : Pallet/Plastic Bags/Wooden Box

Material : Metal

Surface : Galvanized, Zinc Plated, Self-Color

Size : for 6mm~50mm Wire Rope

Packing : Woven bags/Carton+ Pallet

Standard : Standard

Safety Factor : 1:4 normally, 1:6

HS Code : 7326909000

Port of Origin : Shanghai China

Contact Now

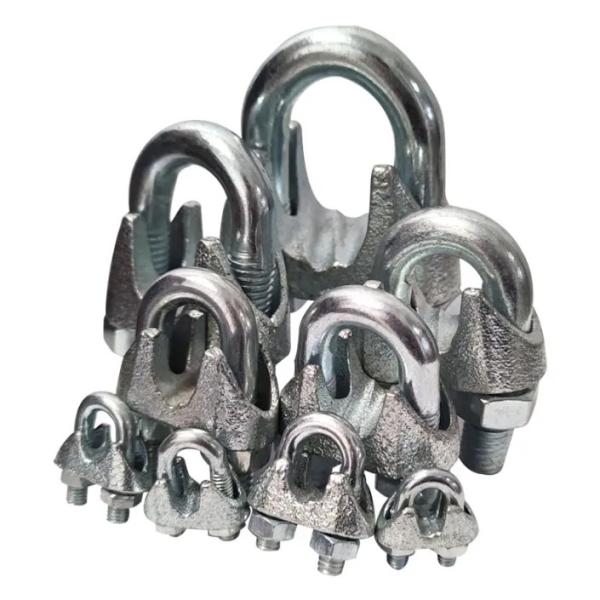

A Type Malleable Steel Galvanized Wire Rope Clip

using together with wire rope for make a heavy duty wire rope sling

For pricing, delivery options and general enquiries, please Contact Us at Sharon.Wang@solarswr.com

Wire Rope Clamp Din741 Rigging Hardware Wire Rope Clip

GALV MALLEABLE WIRE ROPE CLIP TYPE A
SIZE	A	B	C	D	E	F	G	WEIGHT/100pcs
(mm)	A	B	C	D	E	F	G	(kg)

6	12	17	14	5	14	23	24	2.5
8	15	21	16	6	17	28	30	4.5
10	19	28	20	8	21	38	37	9
12	24	34	25	10	27	45	47	18
15	29	40	30	12	32	52	56	28
20	36	47	36	14	38	62	70	47
22	40	52	39	16	43	69	77	62
25	43	56	44	18	50	76	85	85
28	48	62	48	20	57	85	95	120
32	55	67	51	22	61	93	108	157
40	64	81	62	24	73	111	120	261
50	80	95	80	30	95	135	154	480

Wire Rope Clamp Din741 Rigging Hardware Wire Rope Clip
